Part 1: Memory Layout

The way you put data in memory is crucial to achieve a speed-up when vectorising your code. For example, in the diagram below you can see the a vector register being loading with contiguous memory (a[0] a[1] a[2] a[3]), compared to being loaded with non-contiguous memory (a[0] a[10] a[20] a[30]).

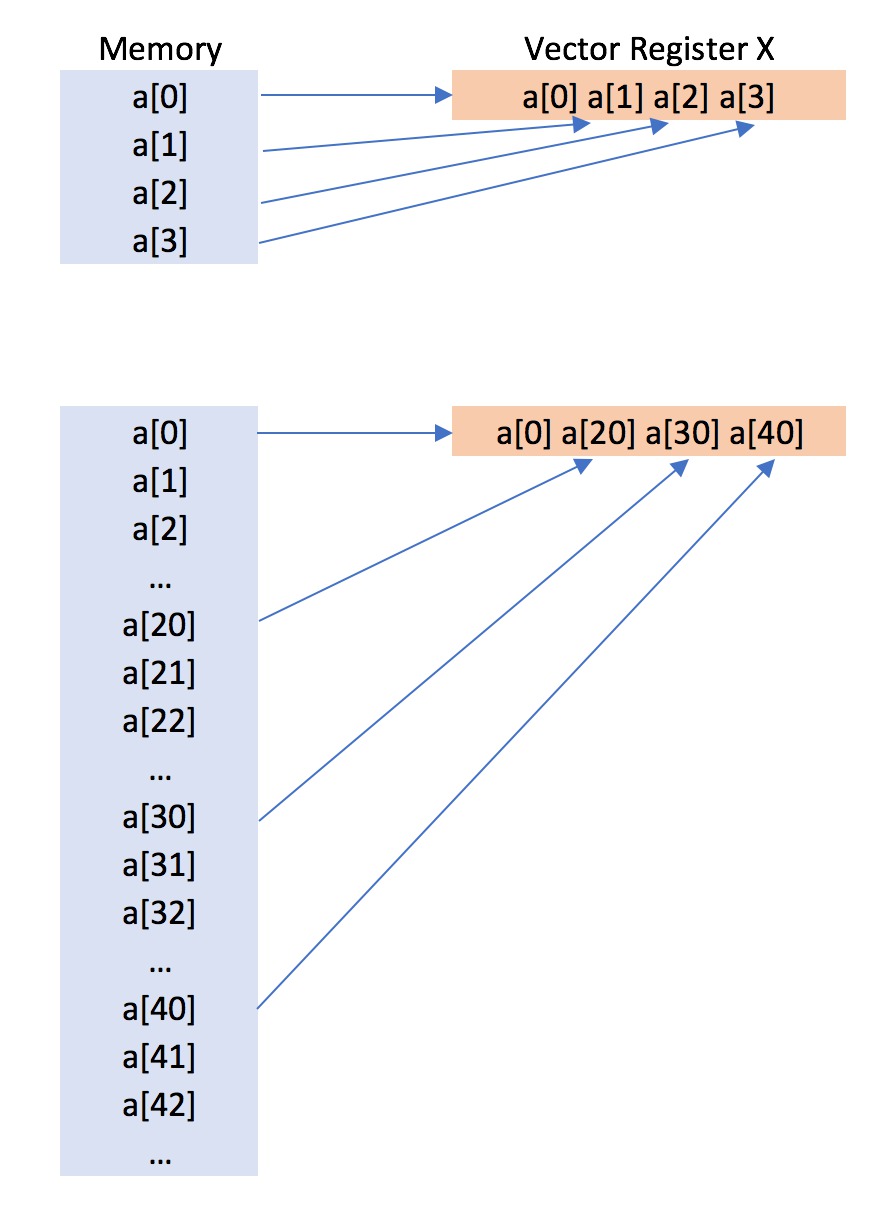

Comparing a packed load versus an unpacked load

We can compare the speed of using contiguous and non-contiguous memory using the code below. Create a new file called loop2.cpp and copy into it;

#include "workshop.h"

int main(int argc, char **argv)
{
    const int size = 512;

    auto a = workshop::Array<float>(10*size);
    auto b = workshop::Array<float>(10*size);
    auto c = workshop::Array<float>(size);

    for (int i=0; i<size; ++i)
    {
        a[i*10] = 1.0*(i+1);
        b[i*10] = 2.5*(i+1);
        c[i] = 0.0;
    }

    auto timer = workshop::start_timer();

    for (int j=0; j<100000; ++j)
    {
        for (int i=0; i<size; ++i)
        {
            c[i] = a[i*10] + b[i*10];
        }
    }

    auto duration = workshop::get_duration(timer);

    timer = workshop::start_timer();

    for (int j=0; j<100000; ++j)
    {
        #pragma omp simd
        for (int i=0; i<size; ++i)
        {
            c[i] = a[i*10] + b[i*10];
        }
    }

    auto vector_duration = workshop::get_duration(timer);

    std::cout << "The standard loop took " << duration
              << " microseconds to complete." << std::endl;

    std::cout << "The vectorised loop took " << vector_duration
              << " microseconds to complete." << std::endl;

    return 0;
}

Compile and run using

g++ -O2 --std=c++14 -fopenmp-simd -Iinclude loop2.cpp -o loop2
./loop2

This program is almost identical to the loop.cpp that you used at the start of this workshop. The only difference is that the loop sums every 10th element of the array rather than every element. This means that the vector registers are being filled by data that is not contiguous in memory (e.g. a[10] is separated from a[20] by ten floats, which is separated from a[30] by ten floats, which is separated from a[40] by ten floats. In comparison a[0] is next to a[1], which is next to a[2] which is next to a[3]).

Do you still see the same speed-up for the vectorised loop over the scalar loop as you did for the original loop.cpp.

On an older Intel processor, I see that the speed up of the vectorised loop compared to the scalar loop of loop2 is only ~1.7x. The speed up for the vectorised loop in loop, which loads from contiguous memory is is ~4x. This shows that loading non-contiguous data into a vector register reduces performance. However, on a new Intel processor (2016) I don’t see any difference in speed-up between loop2 and loop. This suggests that newer processors are less sensitive.

The reason for this is that the processor has to do more work to load data from non-contiguous memory, compared to loading from contiguous memory. Newer processors have features that aim to hide or minimise this extra work.

To maintain performance portability, and make sure that your vector code runs efficiently on both old and new processors, you should make sure you load vectors from contiguous memory whenever possible.

Array of structs versus structs of arrays

It is easy to load vectors from contiguous memory when you are working with simple data types (i.e. floats or doubles). However, the main benefit of using C++ is that you create more complex data types. For example, create a new file called a_of_s.cpp and copy into it the below code;

#include "workshop.h"

int main(int argc, char **argv)
{
    int size = 512;

    auto a = workshop::Array<workshop::Point>(size);
    auto b = workshop::Array<workshop::Point>(size);
    auto c = workshop::Array<float>(size);

    for (int i=0; i<size; ++i)
    {
        a[i] = workshop::Point(i,i+1,i+2);
        b[i] = workshop::Point(2*i, 2*i+1, 2*i+2);
        c[i] = 0;
    }

    auto timer = workshop::start_timer();

    for (int j=0; j<100000; ++j)
    {
        for (int i=0; i<size; ++i)
        {
            float dx = a[i].x - b[i].x;
            float dy = a[i].y - b[i].y;
            float dz = a[i].z - b[i].z;

            c[i] = dx*dx + dy*dy + dz*dz;
        }
    }

    auto duration = workshop::get_duration(timer);

    timer = workshop::start_timer();

    for (int j=0; j<100000; ++j)
    {
        #pragma omp simd
        for (int i=0; i<size; ++i)
        {
            float dx = a[i].x - b[i].x;
            float dy = a[i].y - b[i].y;
            float dz = a[i].z - b[i].z;

            c[i] = dx*dx + dy*dy + dz*dz;
        }
    }

    auto vector_duration = workshop::get_duration(timer);

    std::cout << "The standard loop took " << duration
              << " microseconds to complete." << std::endl;

    std::cout << "The vectorised loop took " << vector_duration
              << " microseconds to complete." << std::endl;

    return 0;
}

Compile and run using

g++ -O2 -fopenmp-simd --std=c++14 -Iinclude a_of_s.cpp -o a_of_s
./a_of_s

This program uses a Point class that is defined in include/workshop.h. This is a simple class with floats to hold the x, y and z coordinates, as seen here;

/** A simple class that holds the coordinates
    for a three-dimensional point */
class Point
{
public:
    Point(float _x=0, float _y=0, float _z=0)
      : x(_x), y(_y), z(_z)
    {}

    float x;
    float y;
    float z;
};

The program creates two arrays of Point objects, a and b. The square of the distance between pairs of points is calculated and stored in c, using the code

float dx = a[i].x - b[i].x;
float dy = a[i].y - b[i].y;
float dz = a[i].z - b[i].z;

c[i] = dx*dx + dy*dy + dz*dz;

As with the previous examples, this is performed as part of a scalar loop, and a loop vectorised using #pragma omp simd.

On most computers, you should see vectorisation has made the calculation faster, but this speed-up is limited (i.e. on my older computer the vector loop is only ~1.25x faster than the scalar loop). Why is this the case?

The reason is that the array stores the Point objects one after another in memory, as seen in the diagram below.

Array of structs layout in memory

This means that the x value of p[1] is separated from the x value of p[0] by the y and z values of p[0]. This array of objects (or, more often called “array of structs”) means that the x values cannot be stored contiguously in memory. We can show that this is the reason for the less-efficient vectorisation by comparing this against an equivalent program where the x, y and z values are collected together into their own arrays. Create a new file called s_of_a.cpp and copy into it;

#include "workshop.h"

int main(int argc, char **argv)
{
    int size = 512;

    auto ax = workshop::Array<float>(size);
    auto ay = workshop::Array<float>(size);
    auto az = workshop::Array<float>(size);

    auto bx = workshop::Array<float>(size);
    auto by = workshop::Array<float>(size);
    auto bz = workshop::Array<float>(size);

    auto c = workshop::Array<float>(size);

    for (int i=0; i<size; ++i)
    {
        ax[i] = i;
        ay[i] = i+1;
        az[i] = i+2;

        bx[i] = 2*i;
        by[i] = 2*i+1;
        bz[i] = 2*i+2;

        c[i] = 0;
    }

    auto timer = workshop::start_timer();

    for (int j=0; j<100000; ++j)
    {
        for (int i=0; i<size; ++i)
        {
            float dx = ax[i] - bx[i];
            float dy = ay[i] - by[i];
            float dz = az[i] - bz[i];

            c[i] = dx*dx + dy*dy + dz*dz;
        }
    }

    auto duration = workshop::get_duration(timer);

    timer = workshop::start_timer();

    for (int j=0; j<100000; ++j)
    {
        #pragma omp simd
        for (int i=0; i<size; ++i)
        {
            float dx = ax[i] - bx[i];
            float dy = ay[i] - by[i];
            float dz = az[i] - bz[i];

            c[i] = dx*dx + dy*dy + dz*dz;
        }
    }

    auto vector_duration = workshop::get_duration(timer);

    std::cout << "The standard loop took " << duration
              << " microseconds to complete." << std::endl;

    std::cout << "The vectorised loop took " << vector_duration
              << " microseconds to complete." << std::endl;

    return 0;
}

Compile and run using;

g++ -O2 -fopenmp-simd --std=c++14 -Iinclude s_of_a.cpp -o s_of_a
./s_of_a

In this case, we have stopped using the Point class, and instead use three arrays (ax, ay, and az) to hold the coordinates of the first group of points, and three arrays (bx, by and bz) to hold the coordinates of the second point. The square distances are calculated using

float dx = ax[i] - bx[i];
float dy = ay[i] - by[i];
float dz = az[i] - bz[i];

c[i] = dx*dx + dy*dy + dz*dz;

Now, the x coordinates are stored contiguously in memory, as are the y coordinates and z coordinates. You should find that this set of arrays shows a greater speed-up from vectorisation than the “array of structs” example above.

On my older Intel processor, the vectorisation speed-up for an array of structs is only ~1.25x. The speed-up for the set of arrays is ~3.4x. However, on my new Intel processor (2016), there is almost no difference in speed-up. This suggests that newer processors are less sensitive to memory layout, and are better able to load vectors from non-contiguous memory.

This suggests that, to maintain performance portability, and ensure that your code runs efficiently on both old and new processors, you should lay out your data using structs of arrays, rather than arrays of structs.

Strategy for writing a vectorisable container

The above section suggests that it is better, at least on older processors, to write code that uses sets of arrays, rather than arrays of structs (or arrays of objects). However, writing code in this way is clumsy and cumbersome, and means sacrificing the readability, ease-of-use and flexibility that C++ object-orientated programming provides.

One strategy to maintain the power of C++ object-orientation, while maintaining vectorisation efficiency, is to write specialist containers that are, in effect, structs of arrays. For example, if we need an array of Point objects, then we should write a new class, e.g. Points, that stores the data as a struct of arrays, as opposed to an array of structs. Such a class is shown below;

/** A simple class that holds the coordinates
    for an array of three-dimensional points,
    automatically converting the "array of structs"
    into a "struct of arrays"
*/
class Points
{
public:
    Points(int size=0)
    {
        if (size > 0)
        {
            x = Array<float>(size, 0.0);
            y = Array<float>(size, 0.0);
            z = Array<float>(size, 0.0);
        }
    }

    Points(const Array<Point> &points)
    {
        x = Array<float>(points.size());
        y = Array<float>(points.size());
        z = Array<float>(points.size());

        for (int i=0; i<points.size(); ++i)
        {
            x[i] = points[i].x;
            y[i] = points[i].y;
            z[i] = points[i].z;
        }
    }

    Point operator[](int i) const
    {
        return Point( x[i], y[i], z[i] );
    }

    void set(int i, Point p)
    {
        x[i] = p.x;
        y[i] = p.y;
        z[i] = p.z;
    }

    Array<Point> toArray() const
    {
        Array<Point> p( x.size() );

        for (int i=0; i<x.size(); ++i)
        {
            p[i] = Point(x[i], y[i], z[i]);
        }

        return p;
    }

    Array<float> x;
    Array<float> y;
    Array<float> z;
};

This Points class is written with a constructor that converts an array of Point objects into separate arrays of floats for the x, y and z coordinates. This has converted the array of structs into a struct of arrays.

An operator[](int i) function is added to provide easy read-only access to the Point at index i. A set(int i, Point p) function is provided to provide write-only access to the Point at index i. In addition, there is a toArray() function that converts this struct of arrays back to an Array<Point> array of structs.

To use this Points class, create a new file called points.cpp and copy into it;

#include "workshop.h"

int main(int argc, char **argv)
{
    int size = 512;

    auto a = workshop::Points(size);
    auto b = workshop::Points(size);
    auto c = workshop::Array<float>(size);

    for (int i=0; i<size; ++i)
    {
        a.set(i, workshop::Point(i,i+1,i+2));
        b.set(i, workshop::Point(2*i, 2*i+1, 2*i+2));
        c[i] = 0;
    }

    auto timer = workshop::start_timer();

    for (int j=0; j<100000; ++j)
    {
        for (int i=0; i<size; ++i)
        {
            float dx = a.x[i] - b.x[i];
            float dy = a.y[i] - b.y[i];
            float dz = a.z[i] - b.z[i];

            c[i] = dx*dx + dy*dy + dz*dz;
        }
    }

    auto duration = workshop::get_duration(timer);

    timer = workshop::start_timer();

    for (int j=0; j<100000; ++j)
    {
        #pragma omp simd
        for (int i=0; i<size; ++i)
        {
            float dx = a.x[i] - b.x[i];
            float dy = a.y[i] - b.y[i];
            float dz = a.z[i] - b.z[i];

            c[i] = dx*dx + dy*dy + dz*dz;
        }
    }

    auto vector_duration = workshop::get_duration(timer);

    std::cout << "The standard loop took " << duration
              << " microseconds to complete." << std::endl;

    std::cout << "The vectorised loop took " << vector_duration
              << " microseconds to complete." << std::endl;

    return 0;
}

Compile and run using

g++ -O2 -fopenmp-simd --std=c++14 -Iinclude points.cpp -o points
./points

You should see the same (or very similar) vector speed-up using this points.cpp code as you did for s_of_a.cpp. The use of the Points container object has the benefit of a convenient C++ object-orientated interface, while supporting a vectorisation-friendly struct of arrays data layout in memory (as seen in the diagram below).

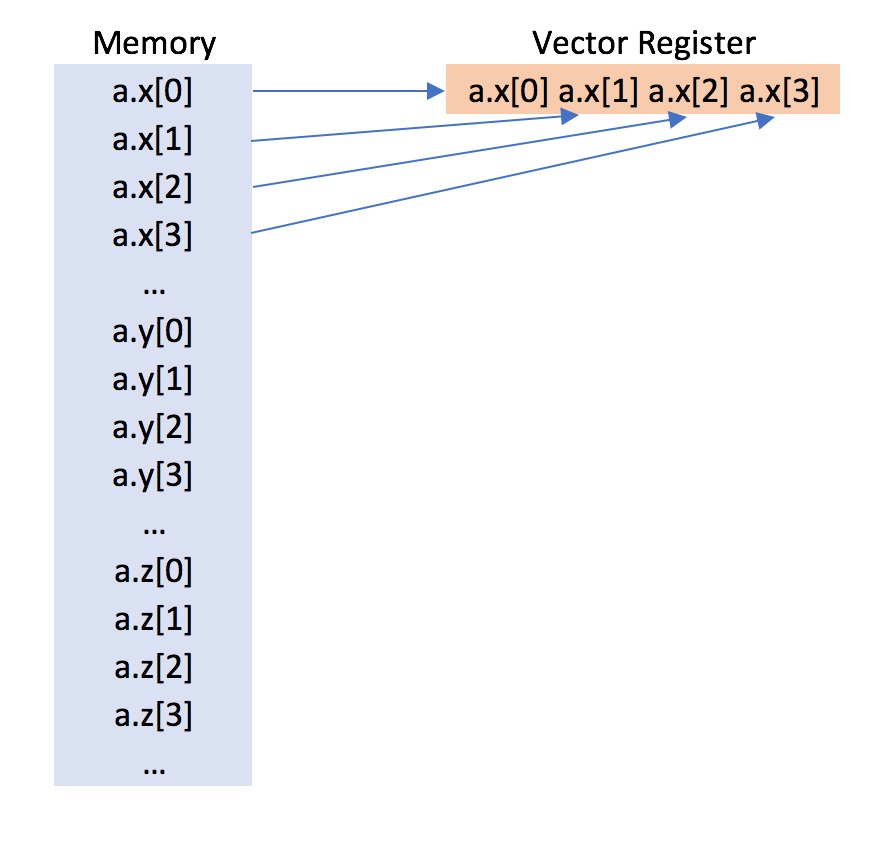

The Points class has a vectorisation-friendly struct of arrays layout

Exercise

#include "workshop.h"

int main(int argc, char **argv)
{
    const int npeople = 1024;

    auto people = workshop::Array<workshop::Person>(npeople);

    //construct a random sample of people (in reality, you would
    //read this from real data - here we are just randomly generating
    //it using functions already provided in workshop.h
    for (int i=0; i<npeople; ++i)
    {
        people[i] = workshop::Person( workshop::getRandomHeight(),
                                      workshop::getRandomWeight() );
    }

    auto timer = workshop::start_timer();

    float avg_ratio = 0;

    for (int j=0; j<100000; ++j)
    {
        avg_ratio = 0;

        for (int i=0; i<npeople; ++i)
        {
            avg_ratio += (people[i].height / people[i].weight);
        }

        avg_ratio /= npeople;
    }

    auto duration = workshop::get_duration(timer);

    timer = workshop::start_timer();

    float vec_avg_ratio = 0;

    for (int j=0; j<100000; ++j)
    {
        vec_avg_ratio = 0;

        #pragma omp simd reduction(+:vec_avg_ratio)
        for (int i=0; i<npeople; ++i)
        {
            vec_avg_ratio += (people[i].height / people[i].weight);
        }

        vec_avg_ratio /= npeople;
    }

    auto vector_duration = workshop::get_duration(timer);

    std::cout << "The standard loop took " << duration
              << " microseconds to complete. The average ratio is "
              << avg_ratio << std::endl;

    std::cout << "The vectorised loop took " << vector_duration
              << " microseconds to complete. The average ratio is "
              << vec_avg_ratio << std::endl;

    return 0;
}

This code calculates the average ratio of the height over the weight of a random sample of 1024 people. The data for each person is held in a Person class which is defined in the include/workshop.h header file, and is as showed below;

/** A simple class that holds measurement data
    about a person */
class Person
{
public:
    Person(float _height=0, float _weight=0, float _girth=0)
      : height(_height), weight(_weight), girth(_girth)
    {}

    float height;
    float weight;
    float girth;
};

Compile and run the code using

g++ -O2 -fopenmp-simd --std=c++14 -Iinclude avg.cpp -o avg
./avg
