Part 3: Mutating Proteins and MD Setup
Mutating the Protein
The first thing we need to do is to mutate the protein. We will need to change the arginine 292 residue into lysine 292. To do this, we will first copy 1NNC.pdb to 1NNC_R292K.pdb by using the command;
cp 1NNC.pdb 1NNC_R292K.pdb
Now edit 1NNC_R292K.pdb by typing;
nano 1NNC_R292K.pdb
Now scroll down this file until you reach the arginine 292 residue;
ATOM 1658 N ARG A 292 26.659 26.406 55.828 1.00 12.03 N
ATOM 1659 CA ARG A 292 26.980 26.755 57.197 1.00 13.50 C
ATOM 1660 C ARG A 292 28.487 26.772 57.423 1.00 13.83 C
ATOM 1661 O ARG A 292 29.181 25.796 57.122 1.00 13.74 O
ATOM 1662 CB ARG A 292 26.327 25.726 58.129 1.00 13.16 C
ATOM 1663 CG ARG A 292 26.891 25.635 59.549 1.00 12.29 C
ATOM 1664 CD ARG A 292 26.367 24.374 60.220 1.00 12.35 C
ATOM 1665 NE ARG A 292 26.868 24.176 61.571 1.00 12.99 N
ATOM 1666 CZ ARG A 292 26.318 23.353 62.464 1.00 13.13 C
ATOM 1667 NH1 ARG A 292 25.200 22.696 62.187 1.00 12.45 N
ATOM 1668 NH2 ARG A 292 26.857 23.230 63.664 1.00 13.02 N
To mutate a residue, you need to change the residue name and remove the atoms that are not common to both residues. In the case of arginine mutating to lysine, we must change “ARG” to “LYS” and must delete all atoms from “CG” to “NH2”, as these are part of arginine, but are not in lysine. Once you have edited the scripts, you should have something that looks like this;
ATOM 1658 N LYS A 292 26.659 26.406 55.828 1.00 12.03 N
ATOM 1659 CA LYS A 292 26.980 26.755 57.197 1.00 13.50 C
ATOM 1660 C LYS A 292 28.487 26.772 57.423 1.00 13.83 C
ATOM 1661 O LYS A 292 29.181 25.796 57.122 1.00 13.74 O
ATOM 1662 CB LYS A 292 26.327 25.726 58.129 1.00 13.16 C
Once you have edited the file, you can then use the “tleap” program that is part of AmberTools. This program will automatically add all of the hydrogen atoms to zanamivir and the protein, and will also add in the extra atoms for lysine 292. This is controlled using a tleap command file called “add_atoms.in”. If you are interested, you can take a look at this file using a text editor to see what it is doing.
To run tleap type;
$AMBERHOME/bin/tleap -s -f add_atoms.in

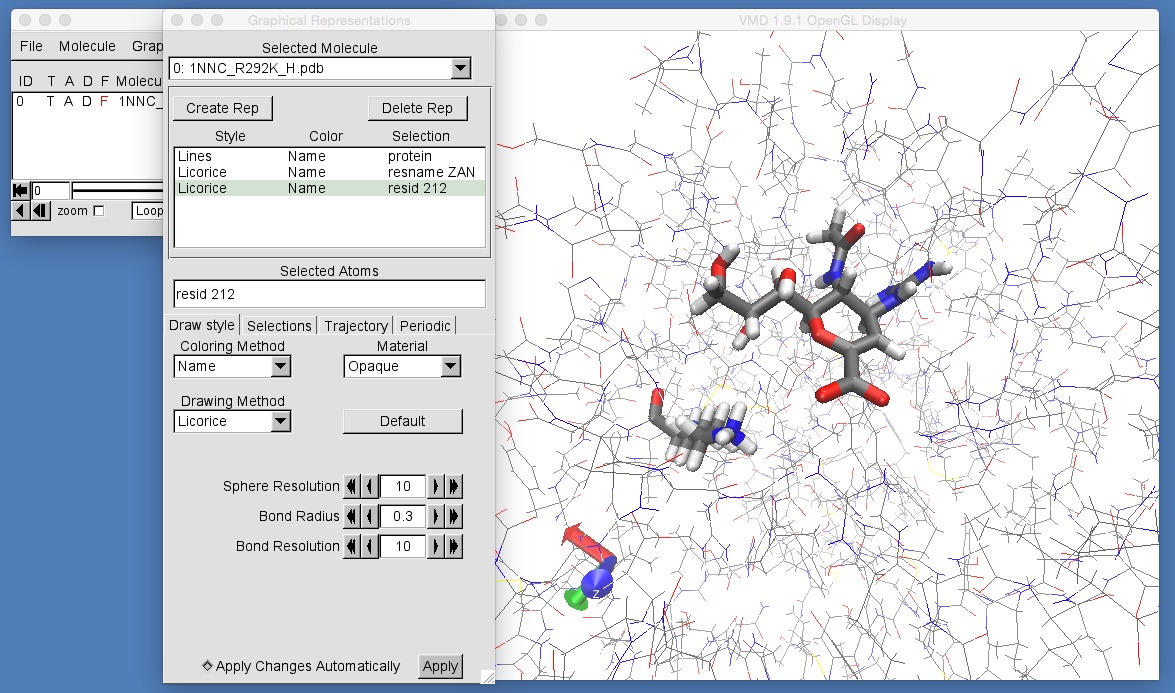

This will create a new PDB file called “1NNC_R292K_H.pdb”. Take a look at this file in VMD by typing;
vmd 1NNC_R292K_H.pdb
As you can see, all missing hydrogens and lysine atoms have been added correctly. You should also be able to see that tleap has renumbered the residues, so lysine 292 has been renumbered to lysine 212 (hence, to view this residue, you need to use “resid 212” rather than “resid 292” in VMD).
